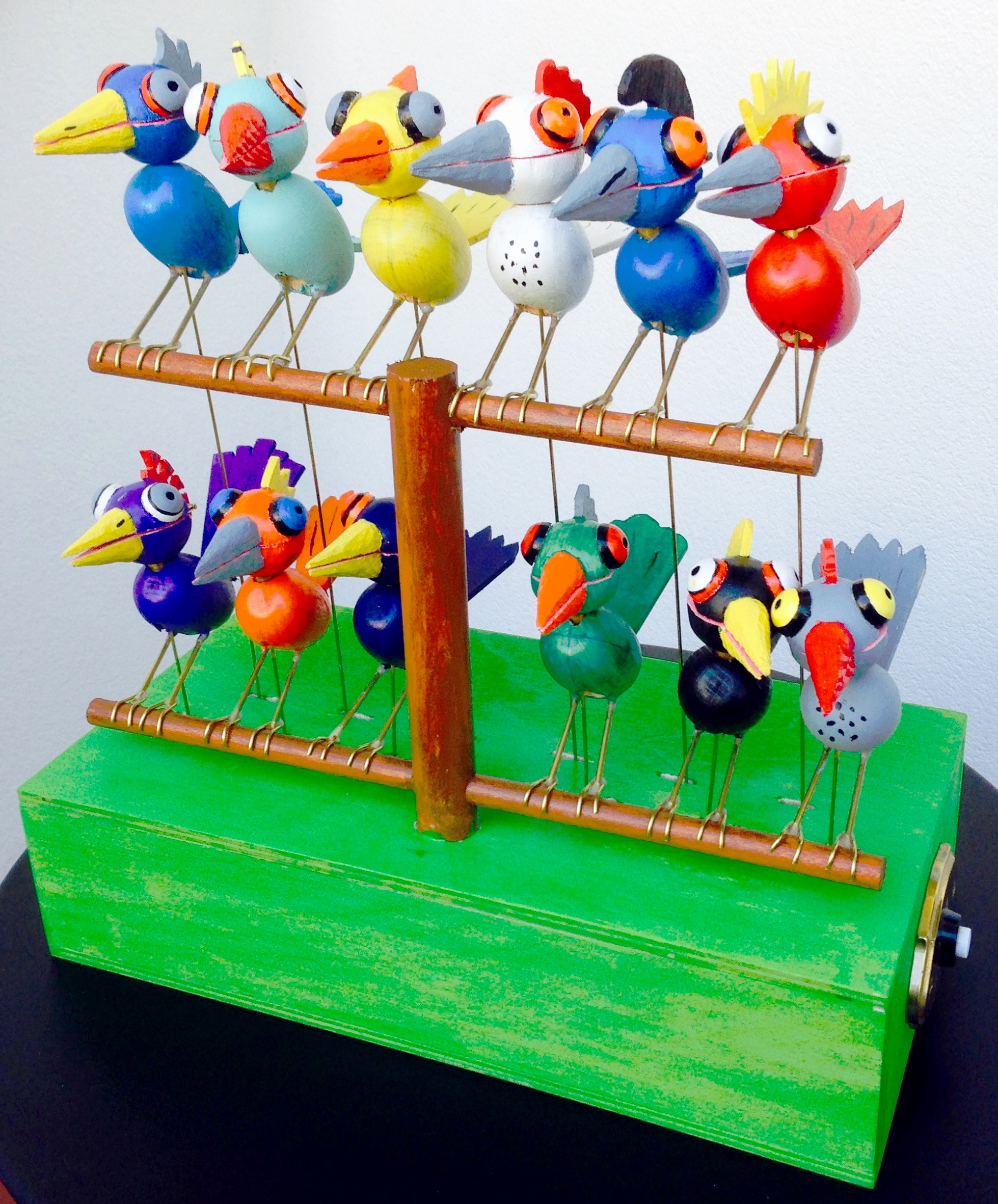

FullSizeRender 57

Twelve Tweeters

A clock with roots that occasionally hoots. The time it can tell without even a bell. Ask it nicely and it will tell you precisely, but if no one’s around it won’t make a sound. A dozen on their perch won’t leave you in the lurch, the assembled dawn chorus will sing something forus. To make time a pleasure – a real treasure – not just something to measure.

To Tell The Time

Push the button – there are two parts to the time

  1. For the first part, the birds stretch their necks to show the number of hours from 1 to 12. You can look out of the window to see if it’s morning or afternoon.
  2. For the second part, each bird is responsible for 5 minutes, so for example, if the fifth bird sings that means twenty-five past.

The birds

For each bird, take one egg 45 x 30 mm, one 30 mm ball, one 15 mm ball with a hole, 13 x 10 mm wooden strip, 8 mm brass tube, small free-moving hinge, 2 mm plywood, 1.2 mm brass rod, 2 mm brass rod
Wooden_egg Wooden_ball Small_ball Half_cut_beak Brass_tube Brass_hingeBrass_rodBrass_rod



Make 12 birds. Be careful drilling eggs, use pilot holes to prevent the drill slipping. Use a strong glue to fix the hinges but make sure they still move easily. The 1.2 mm brass rod is used to push the beak open until it reaches 45°(ish) and is restrained by the comb when the whole head will move up, exposing the brass neck.

Bird_design

Prototype_1
Simple lever on the servo pushes/pulls the brass rod in this prototype. The slot for the brass rod is large enough to accommodate its sideways movement. There is a cross piece soldered to top of rod keep head straight(ish)

Prototype_2
The bird’s comb stops beak from opening too far. With the beak fully open, further movement of the rod stretches its neck.

The Base

My base was quite compact. It would be easier to make it larger and space things out.

12_birds_base_final

I used twelve cheap (€6.59) and cheerful servos. I added calibration into the software to deal with the variations in positioning.

Servo

 The Electronics

Take one Arduino Uno , one Music Maker shield, one 16 channel PWM driver board with added 2200 µF power smoothing capacitor, one real-time clock board, a micro SD card, a loudspeaker, a pushbutton and a power supply.

Arduino UnoMusic Maker shield16 channel PWM driverRTCMicro SD card

Assemble the Music Maker, fit it onto the Arduino, wire up the PWM driver board and RTC. The Music Maker uses the SPI bus. The RTC and the servo driver both use the I2C bus. The default addresses are fine.

Inspiration

BBC tweet of the day
Tinkersoup MP3 shield €36
Adafruit overview of MP3 shield
BBC birdsong
Birds tree by Carlos Zapata

Freesound For Dawn Chorus
Use Camera with SD card to mount the SD card as drive on Mac computer.
Drag and drop to copy files.

Parts

Modelcraft Standard-Servo 410 Standard Analog Servo 410 plastic gears JR € 5.99
Wooden eggs, 45×30 mm €0.50
Wooden ball 30 mm diameter €0.32

Work in progress
